Dishwasher Installation

Answer a series of questions to know the right service for you!

Back

×

Dishwasher Installation

Installation includes
  1. Review installation with customer at start of work.
  2. Remove packaging and inspect unit.
  3. Prepare appropriate drilling if side-mounting is necessary and possible.
  4. Install of the new dishwasher into opening and hook up to existing plumbing and electrical.
  5. Ensure dishwasher is properly grounded.
  6. Test to ensure proper operation.
If dishwasher exist:
  1. Disconnect existing dishwasher.
  2. Supply and install of new dishwasher supply line.
For new dishwasher:
  1. Install shut off valve, supply line and any other minor plumbing and electrical as required up to existing branch wiring and plumbing.
Installation does not include
  1. Disposal of old unit and packaging unless haul away via installer has been purchased.
  2. Supply and install of a new shut off valve if dishwasher exist.
  3. Routing water and drain lines through adjacent cabinet(s) other than the sink base.
  4. Pick-up and delivery of the dishwasher unless delivery via installer has been purchased.
  5. Upgrading of electrical services, structural modifications or removal of cabinetry to accommodate new appliances.
  6. Note: Replacement of circuit breakers (requires a licensed electrician).

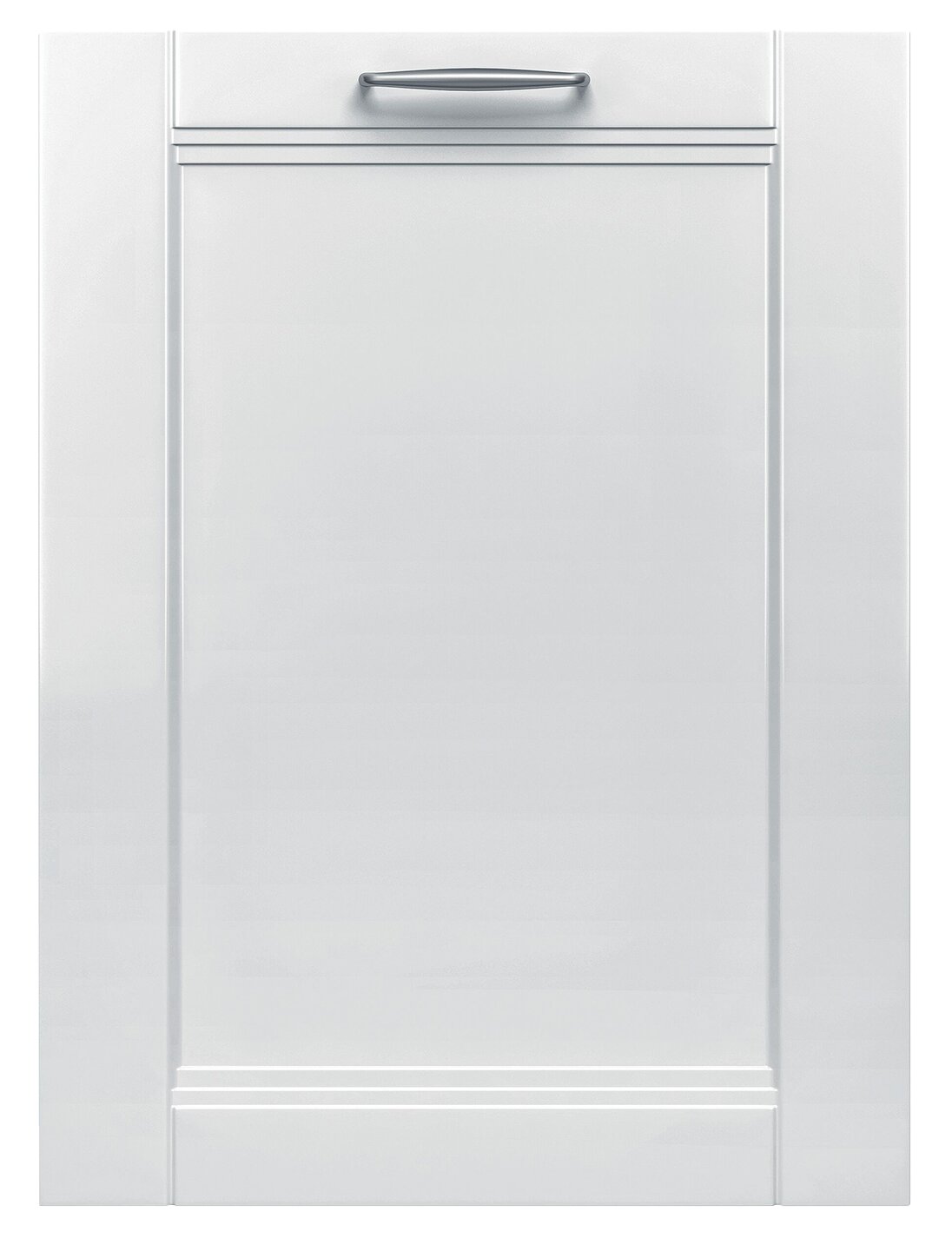

Bosch 800 Series Panel-Ready Smart Dishwasher with CrystalDry™ and Third Rack - SHV78CM3N

Dimensions: 24" w x 33.875" h x 23.75" d
$2,099.00 Was $2,749.97

Find the right installation option for you

What's included?
Sku: SHV7CM3N
Wishlist (0)
Maximum quantity available reached.

No more scrubbing, rinsing or handwashing – this Bosch dishwasher takes care of post-dinner cleanup with ease. The PowerControl™ spray arm combined with PrecisionWash® technology provides a deep, targeted clean. Then, CrystalDry transforms moisture into heat for an exceptional dry, even on plastics. Load dishes any way you like thanks to both an adjustable upper rack that can move to nine convenient positions and a full third rack perfect for silverware and stemware. Operating at a whisper-quiet 42 decibels, you’ll barely know the dishwasher is running.

Product Dimensions: Width:24" Height:33.875" Depth:23.75"

Unique Features:

Custom Panel:
Seamlessly integrate your dishwasher by matching it to your kitchen’s custom cabinetry. The unique design allows for a fully flush install for a new level of sophistication.

PrecisionWash Technology:
Intelligent sensors assess soil levels and scan progress throughout the cycle, so you can enjoy the ultimate clean.

PowerControl Spray Arm:
The PowerControl spray arm enhances PrecisionWash performance, allowing you to select which areas get a targeted clean no matter where you load them on the bottom rack.

Wi-Fi Enabled with Home Connect™:
Connect to Wi-Fi and enable Home Connect to easily reorder dish tabs via the Amazon app. Plus, start cycles remotely from anywhere and receive alerts when your dishes are done.

CrystalDry Technology:
Patented CrystalDry technology transforms moisture into heat to give dishes, including plastics, a thorough dry.

Flexible Third Rack:
The third rack creates the perfect space for flatware, large utensils, measuring cups or nearly anything else that can be challenging to fit in a traditional dishwasher.

RackMatic® Adjustable Rack:
The upper rack easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit while leaving room for pots and pans below.

Detergent Tray:
A detergent tray holds tabs in place for a dedicated spray jet to directly dissolve them completely. This results in a deeper clean and reduces noise since there’s no water jet spraying at the door.

24/7 AquaStop® Leak Protection:
AquaStop features sensors that automatically close the water inlet and activate the drain pump if a possible leak is detected, giving you ultimate peace of mind.

Certification: ENERGY STAR® Qualified

Controls: Touch Controls

Dishwasher Capacity: 16 Place Settings

Dishwashers Type: Built-In

Filtration Type: Triple Filtration System

Racks: Lower Rack, Adjustable Upper Rack, Flexible Third Rack

Silverware Basket: Half Basket

Tub Type: Stainless Steel

Wash Cycles:

  • Standard Cycles: Heavy, Auto, Normal, Speed60, My Cycle/Wi-Fi/Download
  • Downloadable Cycles: Delicate, Rinse/Rinse & Hold, MachineCare

Wash Options:

  • Standard Options: Sanitize, Remote Start, CrystalDry, Controlled Spray Arm
  • Downloadable Options: Half Load, Eco

Wash System: PrecisionWash with PowerControl

Appliance Features: Fingerprint Resistant, Hoses Included, Sanitize, Smart Capable, Third Rack, Top Control

Care Instructions: Please refer to your Owner's Manual

Energy Consumption: 240 kWh/year

Finish: Custom Panel

Included In Box: Power Cord, Drain Hose

Levelling System: Adjustable Feet

Package Includes: Power Cord, Drain Hose

Sold Separately: Custom Panel

Technology Features: Wi-Fi Connectivity with Home Connect

Additional Details: Warranty:

  • Limited Warranty for Entire Appliance: Parts and Labour (1 Year)
  • Limited Warranty for Microprocessor or Printed Circuit Board: Parts Only (2nd to 5th Year)
  • Limited Warranty for Racks (Does Not Include Rack Components): Parts Only (2nd to 5th Year)
  • Limited Warranty for Rust-Through on Inner Tub Liner: Parts Only (Lifetime)
