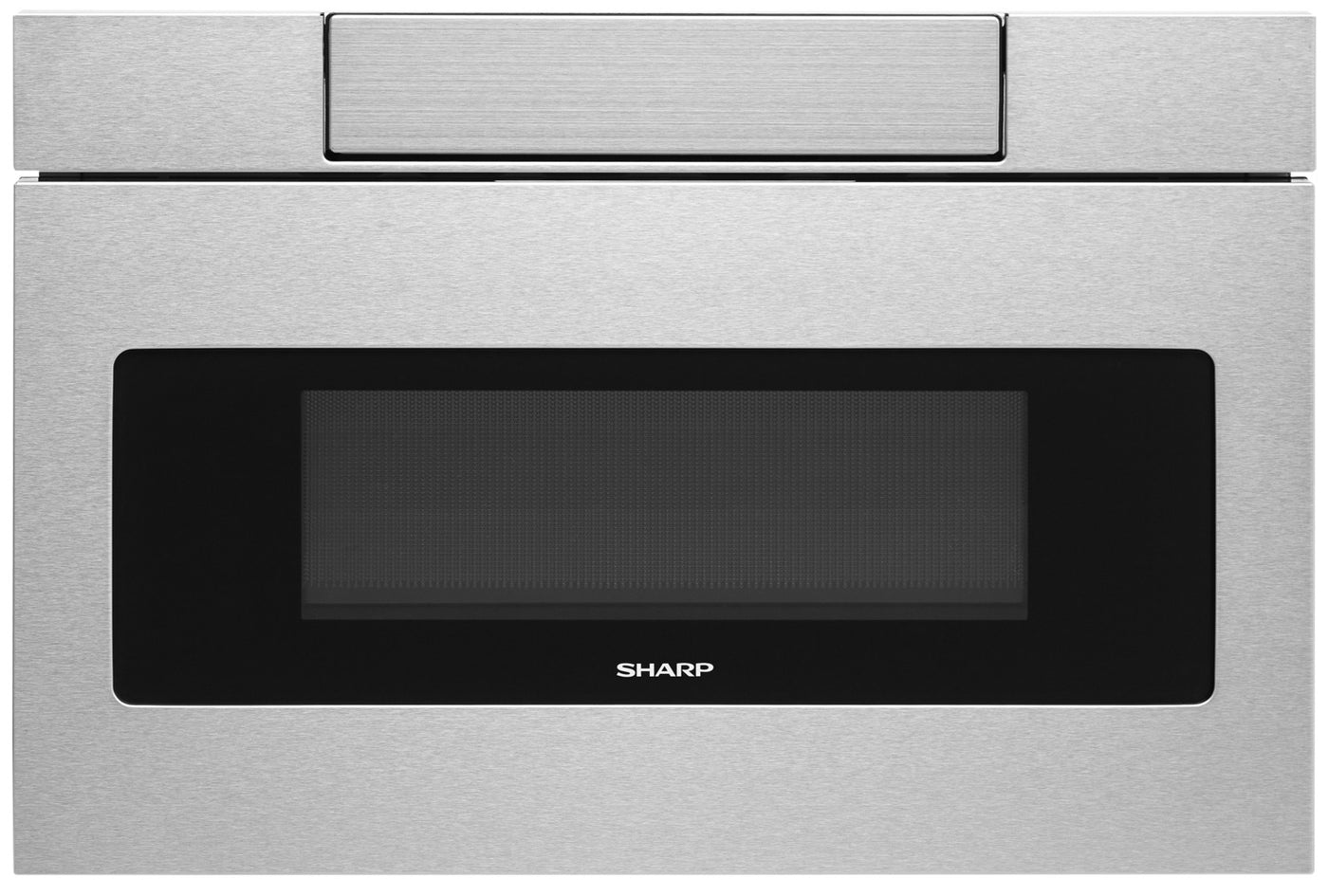

SHARP 30" Microwave Drawer® Oven

Dimensions: 30" w x 15.87" h x 23.01" d
$1,999.99 Was $2,279.97
Sku: SMD3077S
Wishlist (0)
Maximum quantity available reached.

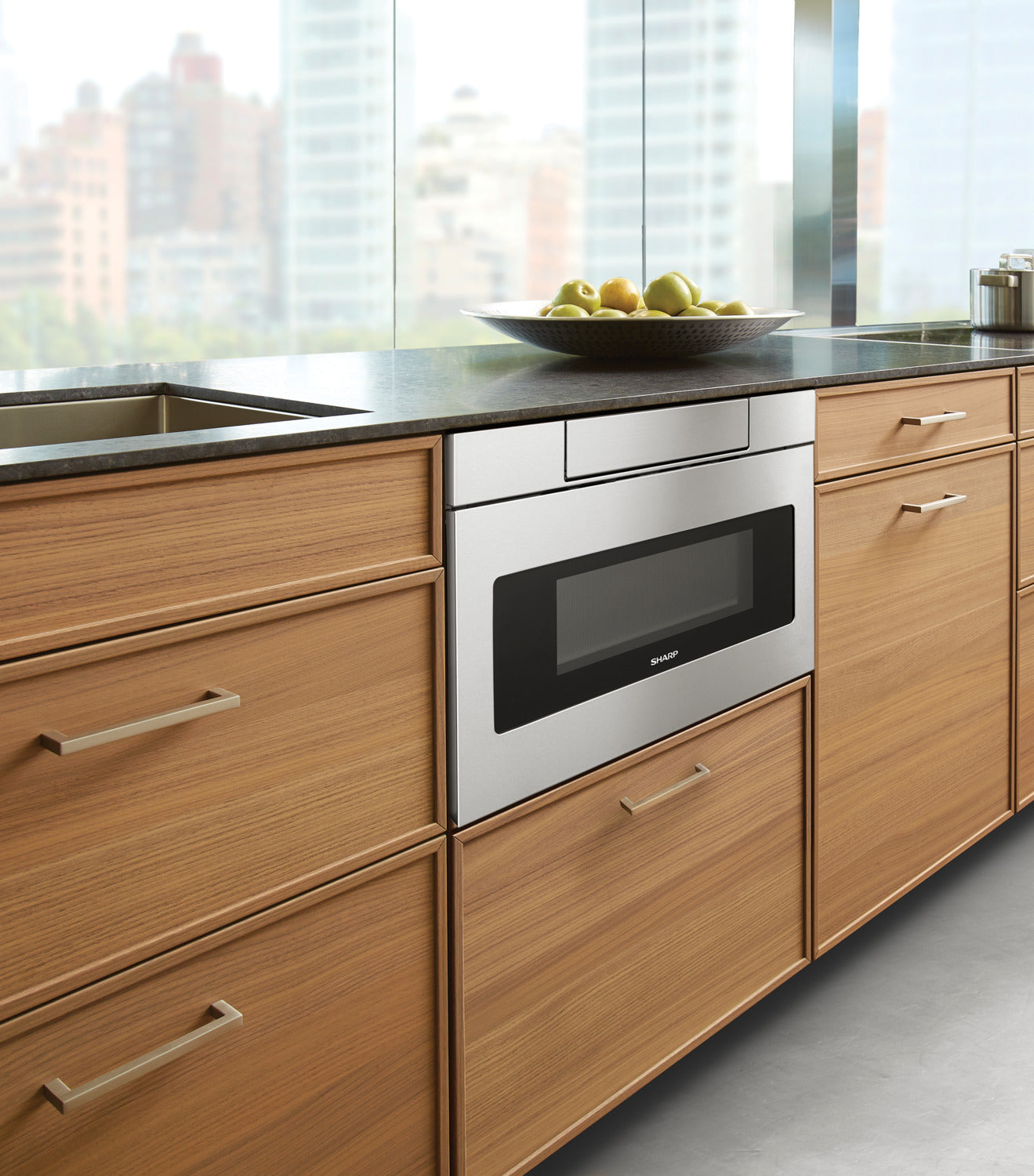

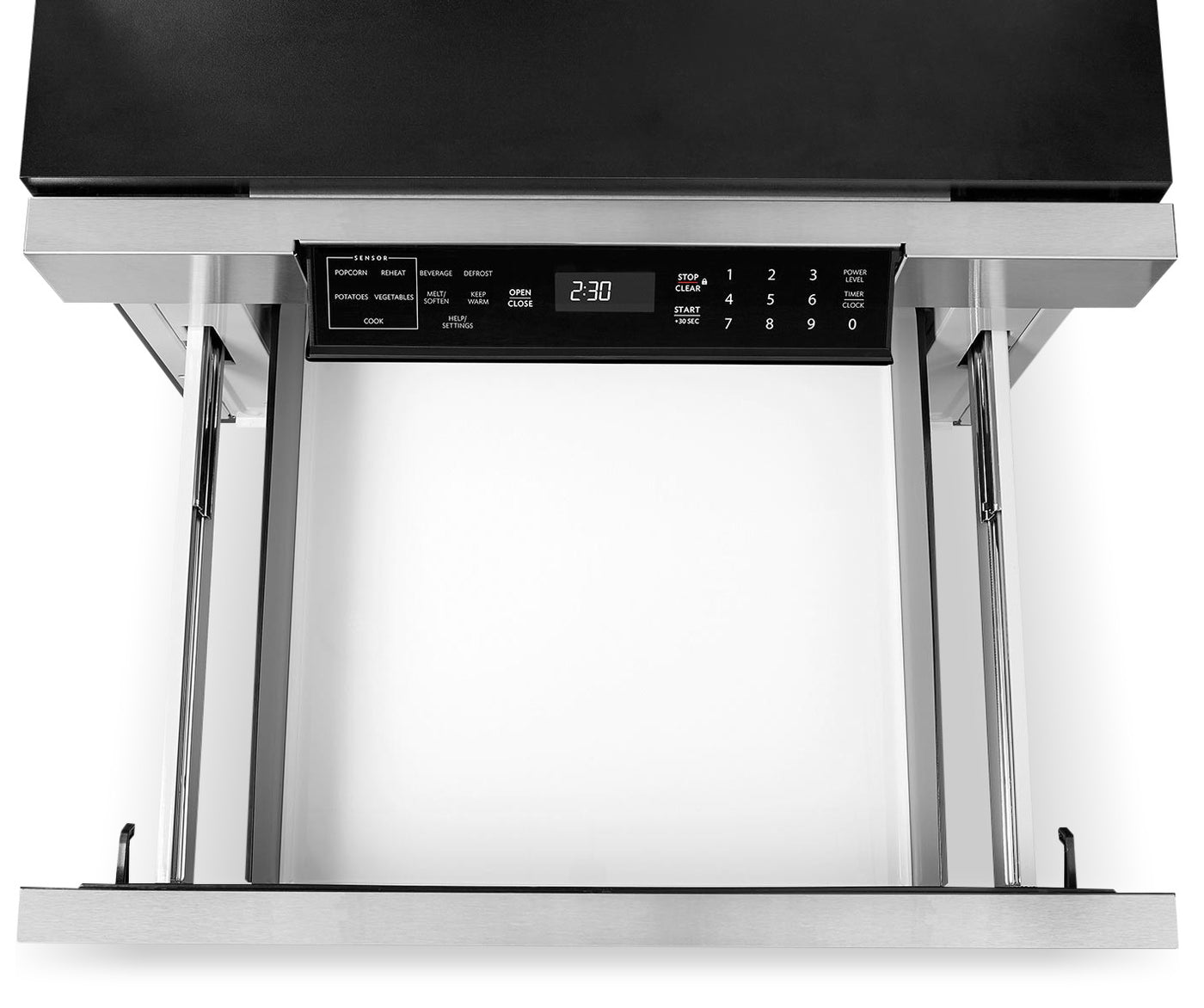

This Microwave Drawer offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven. An easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it’s easy to read and operate. Easy Touch Automatic Drawer system eases open with a gentle pull or the touch of a button. The even, gliding action and solid construction prevents liquids from spilling during opening and closing.

Product Dimensions: Width:30" Height:15.87" Depth:23.01" Length:"

Other Dimensions: Cut-out Dimension 28 7/16” x 15 9/16” x 23 1/2”
Product Dimension 30” x 15 7/8” x 23 1/64”
Shipping Dimensions - 34.8” x 29.3” x 21.8”
Shipping Weight - 91 lbs

Unique Features:Sharp’s exclusive AutoTouch™ system allows you to open and close the drawer automatically at one-finger operation
Design flexibility option option for microwave placement in almost any kitchen plan— it’s a perfect choice for open-plan kitchens, islands & peninsulas,

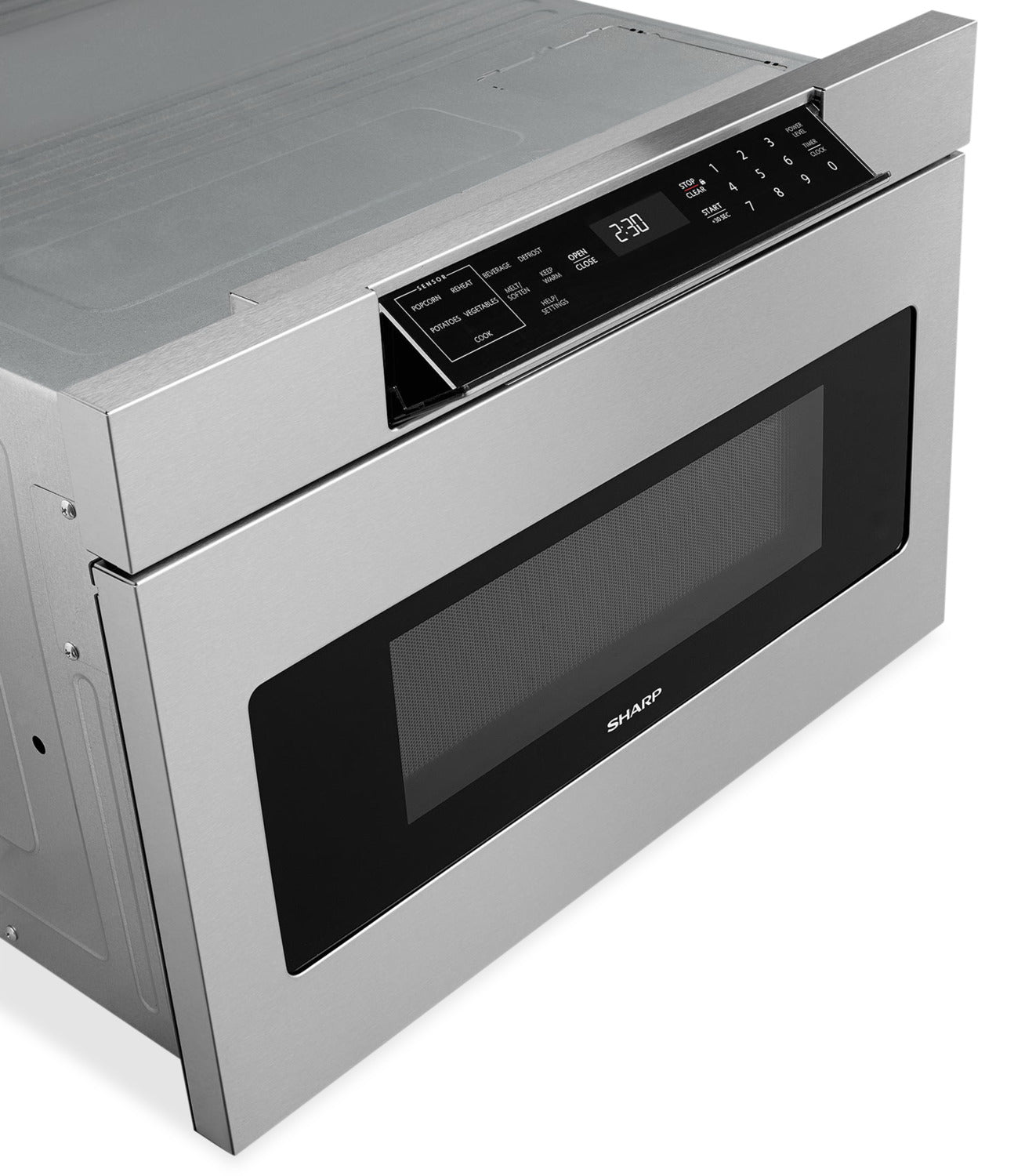

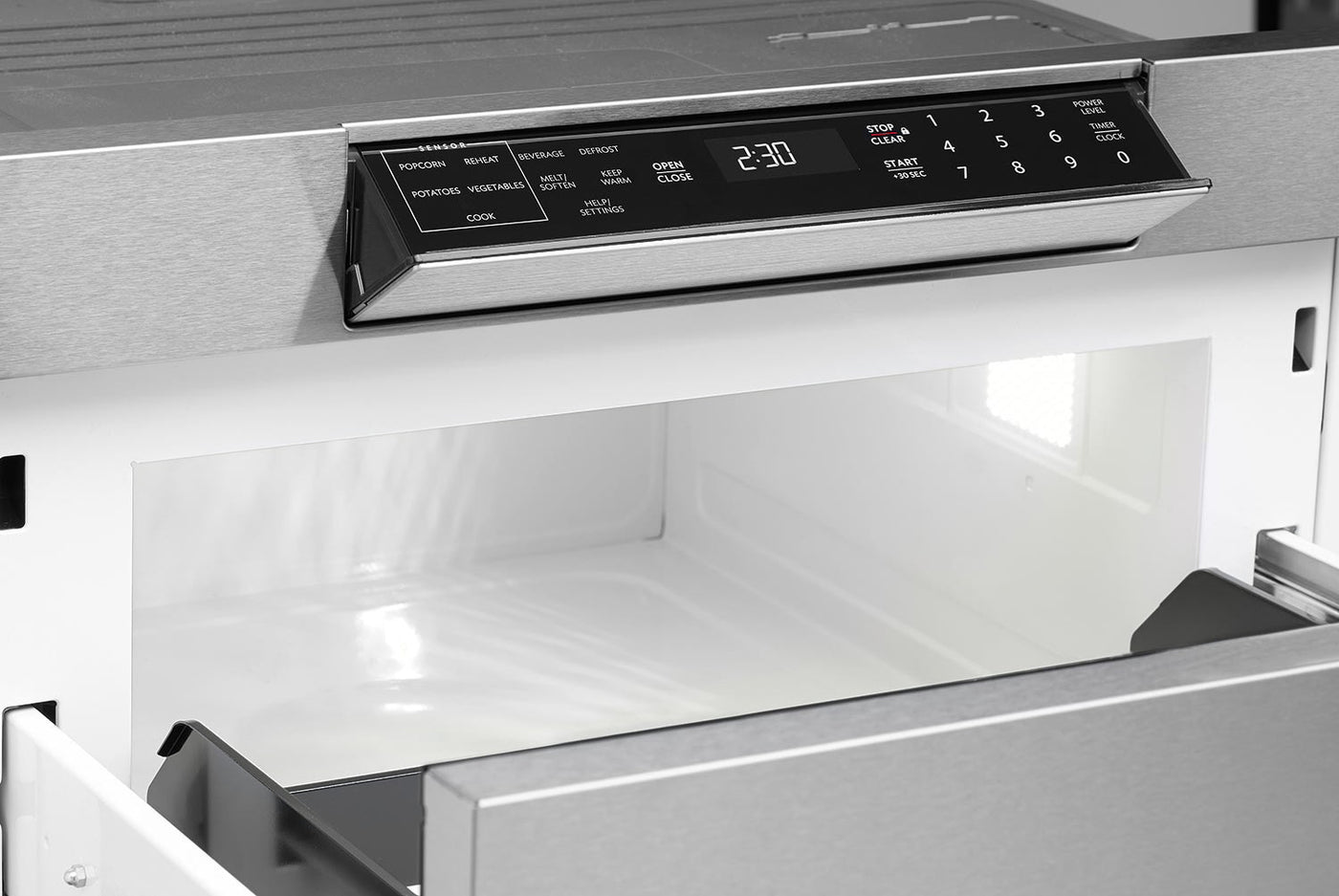

SMD3077ASC features a hidden control panel which gives a more integrated look and feel within the kitchen. The new tall control panel, angled at 45° degrees, is easy to see, easy to access & easy to use.
Sharp's next generation SMD3077ASC - microwave drawer with a simpler and a sleeker design to match more built-in appliances.
Cooking and cleaning easier by putting the microwave at an accessible height. Easily lift hot foods from the Drawer. Stir dishes without removing them. And low sides and a virtual Carousel® make cleaning a breeze.

Cooking Capacity: 1.2 Cu. Ft.

Cooking Modes: 13

Cooking System: MICROWAVE

Display Languages: ENGLISH

Energy Consumption: 1.67Kw, 14.5Amps

Install Requirements: Installation required by trained built in appliances installer. Refer to installation instructions provided in the box & Sharp.ca URL site for installation instructions. http://www.sharp.ca/model.aspx?ID=1805&group=md

Max Power: 950

Power Levels: 11

Power Source: AC 120V, 60Hz

Sensor Cooking: YES

Turntable Type: NO

Ventilation Type: HIDDEN VENTILATION

Unique Features

Sharp’s exclusive AutoTouch™ system allows you to open and close the drawer automatically at one-finger operation

Design flexibility option option for microwave placement in almost any kitchen plan— it’s a perfect choice for open-plan kitchens, islands & peninsulas,

SMD3077ASC features a hidden control panel which gives a more integrated look and feel within the kitchen. The new tall control panel, angled at 45° degrees, is easy to see, easy to access & easy to use.

Sharp's next generation SMD3077ASC - microwave drawer with a simpler and a sleeker design to match more built-in appliances.

Cooking and cleaning easier by putting the microwave at an accessible height. Easily lift hot foods from the Drawer. Stir dishes without removing them. And low sides and a virtual Carousel® make cleaning a breeze.

General Details

  • Appliance Features: Child Lock
  • Microwave Type: Built-In
  • Control Panel: HIDDEN PANEL
  • Display Language(s): ENGLISH
  • Turntable Type: NO
  • Energy Consumption: 1.67Kw, 14.5Amps
  • Power Source: AC 120V, 60Hz
  • Manufacturer's Warranty: 1 YEAR PARTS & LABOUR
  • In The Box (what's included): 30" FLUSH MOUNT DEFLECTOR VENT - SKMD24FOAS

Cooking Details

  • Max Power: 950 W
  • Cooking Modes: 13
  • One-Touch Functions: YES
  • Sensor Cooking: YES
  • Power Levels: 11

Air Conditioner Details

  • Max Power: 950 W

Installation Details

  • Installation Requirements: Installation required by trained built in appliances installer. Refer to installation instructions provided in the box & Sharp.ca URL site for installation instructions. http://www.sharp.ca/model.aspx?ID=1805&group=md
  • Assembly Instructions: Click Here

Additional Dimensions:

  • Turntable Diameter: NA
  • Cut-out Dimension 28 7/16” x 15 9/16” x 23 1/2”
  • Product Dimension 30” x 15 7/8” x 23 1/64”
  • Shipping Dimensions - 34.8” x 29.3” x 21.8”
  • Shipping Weight - 91 lbs

Control Panel: HIDDEN PANEL

Package Includes: 30" FLUSH MOUNT DEFLECTOR VENT - SKMD24FOAS

Safety: Safety Compliance FCC, DHHS, Cul

Shipping Depth: 29.30

Shipping Height: 21.80

Shipping Width: 34.8

Weight: 79

Finish: Stainless Steel
